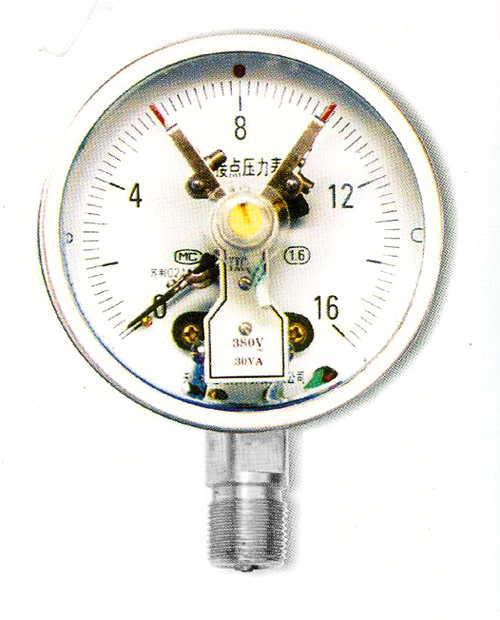

儀表具有抗介質脈動和沖擊載荷，耐環境振動等優異特性。紐扣式儀表設上下限二位開關接點裝置，在壓力達到設定值時發出信號或通斷控制電路，供作業系統自動控制或發訊用。
一般電接點儀表只適用于對銅和銅合金無腐蝕作用的液體，氣體等，介質的測量。紐扣式電接點儀表，還具有耐酸耐高溫的突出優點，特別適用于無填充液，高電壓（380VAC、220VDC）的用戶作控制信號切換用，觸點在原有基礎上加大了磁頭的接觸面，對信號的切換更加可靠，工作更加穩定，在高電壓的情況下更延長了使用壽命，廣泛應用機械、化工石油、冶金、電力等工業生產過程。
Instruments of anti-media and the impact of fluctuating load, vibration-resistant environment, such as outstanding characteristics. Button-meter located on the lower limit of two switch contact device, the pressure to set a signal or when the value of on-off control circuit for the operating system's automatic control or the use.
General Instrument, contact only applies to copper and copper alloy no corrosive effect of the liquid, gas, media measurement. Button-type contact instruments, also has an outstanding advantage of high temperature acid, is particularly applicable to non-filled liquid, high-voltage (380 VAC, 220VDC) for the user to switch control signals, based on the original contact the head of the increase contacts , The switch to signal more reliable, more stable work, in the case of high-voltage more extended service life, the wider use of machinery, petroleum chemical industry, metallurgy, electric power and other industrial processes. |
|
| 技術參數： |
|
|
型 號 |
YXCK-100B-ZQ |
YXCK-100B |
YXCK-150B |
YXCK-100B-TQ |
YXCK-150B-TQ |
|
結構形式 |
軸向帶前邊 |
徑向無邊 |
徑向帶前邊 |
|
|
-0.1～0.15,-0.1～0.3,-0.1～0.5,-0.1-0.9,-0.1～1.5, -0.1
～2.4, 0.1,0.16,0.25,0.4,0.6,1.0,1.6,2.5,4,6,10,16,25,40,60
|
|
精確度% |
±1.6
|
|
|
最大工作電壓 |
|
| 起動電流 |
1A
|
| 持續電流 |
0.6A |
| 最大功率(無感負載) |
20VA 20W
|
|
電纜連接器 |
X14K4P
| |
使用工作溫度：-25℃～100℃ 工作壓力上限：不大于儀表上限的2/3
工作環境振動頻率不大于25Hz，振幅不大于0.5mm
外形尺寸：儀表外型尺寸與干簧式相同
使用與訂貨須知：
訂貨說明名稱、型號及測量上限。 | |
